|Substrate:||Drill Bits, Milling Cutter, Core Shaft, Blades, Precision Mould, Cutting Tools, Etc.||Operating System:||PLC Touching Screen|
|Chamber Material:||SUS304||Control System:||Manual Automatic All-in-One|
|After Sale Service:||Engineers Avaliable To Service Machinery Oversea||Limited Vacuum Degree:||8*10-4Pa|
dlc coating equipment,
diamond coating machine
1.Automotive, non-ferrous material machining and industrial engineering environments.
2.This equipment is a multi functional coating equipment, which can be installed at the same time two to
six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high-
performance and super hard film layer, excellent wear resistance and corrosion resistance and
beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting
The machine is consist of vacuum chamber, vacuum pumping system, bias power supply, coating system,
gas system, control system,alarm system and heating system .

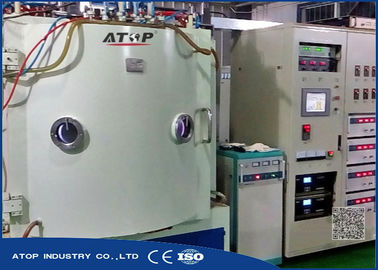

|ATOP Diamond Like Carbon Coating Equipment/ DLC Coating Machine|
Vacuum Chamber Size
|Decide according to the substrate size and output|
|Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.|
|Pure metal or alloy composite nano film|
|Gold, silver, black etc.|
|Vertical type ; horizontal type ; single door type ; double-door type.|
Adopt multiple sets of twin arc, which can install 2-6 different target materials. Pure
metal or alloy composite nano film layer is achieved.
Plasma source assisted deposition technology,pre-cleaning and the auxiliary
deposition to the work piece. Adopt the high power pulse bias power supply
enhance the coating adhesion.
1.Plasma source assisted deposition technology,pre-cleaning and the auxiliary deposition to the work
2. Adopt the high power pulse bias power supply enhance the coating adhesion.
3. Adopt multiple sets of twin arc,which can install 2-6 different target materials.Pure metal or alloy
composite nano film layer is achieved.
4.The work piece rack adopts rotation and revolution structure,large loading capacity and temperature
resistance.The frame can move out of the chamber which is convenient to load heavy molds.The work
piece rack can be customized according to customer requirements and adopts inverter to adjust,and
infinitely adjustable speed.
