|Substrate:||Hardware,glass Crafts,ceramic Crafts,etc||Coating Film:||Function Film,decorative Film,etc|
|Coating Color:||Gold,rose Gold,brown,bronze,blue,black,etc||After Sale Service:||Engineers Avaliable To Service Machinery Oversea|
|Limited Vacuum Degree:||8*10-4Pa||Technology:||Vacuum Coating|
gold coating machine,
titanium coating machine
The principle of the electric arc is integrating cold cathode arc discharge self-sustained light unite pulse
technique and magnetron sputtering technology, thinning the particles to improve the properties of the
film. It can coat on the surface of the metal as well as nonmetal.
It applies to hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal shell,sanitary
ware,mould,electronic products,crystal glass, glasses, cutlery, knives and so on.
You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color,rose
gold,coffee,brown,bronze,blue,black,white,gray and other colors),it combined with magnetron sputtering
technique can be plated the multilayer composite membrane and manufactured plated stainless steel,
aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN,
CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and
its compounds film.
Vacuum coating machine is the most environmental and friendly surface treatment machine without waste
and harmful gas and liquid.
The specific configuration of coating machine can be designed according to process requirements of
Vacuum coating machine make the metal deposition on surface of the product,make the it colorful,
beautiful,function Strong adhesion , good compactness, well repeatability and consistence of color.
Structure type:Vertical type or horizontal type
Chamber type:single door or double doors
1. It equipments cryogenic ion secondary source, some substrate without heating the material, It
can directly do the cold plating film at room temperature, save energy, increase productivity.
2. The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool
Coater coating applications require heating device, other applications do not need the device.
3. High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional
coating on a variety of products. So it is a ideal equipment to do the high-grade and best coating for mass
4. Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the
cathode surface magnetic field near the work piece surface. Then it improves the sputtered atom
ionization rate. It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.
5. The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode
and the magnetic field structure,. It will happen atomic diffusion between the coating and the material. It
also has the advantages that lon Beam Assisted Deposition.
6. Vacuum pumping system, electric control system and complete vacuum coating system can be
customized according to user requirements.

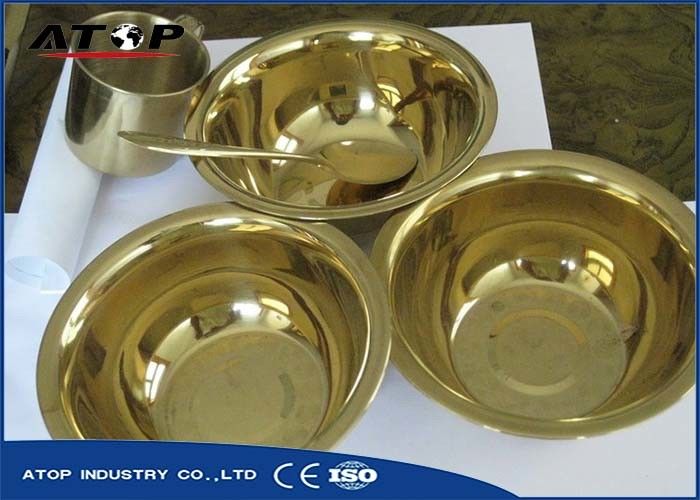

ATOP Titanium Coating Vacuum Ion Plating Machine For Stainless Steel Tableware
Vacuum Chamber Size
|Decide according to the substrate size and output|
Hardware,glass crafts,ceramic crafts,such us watches,mobile phone metal
shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery, knives
and so on
|High-grade decorative coating.|
Gold, rose gold,coffee,brown,bronze,blue,black,white,gray etc.
Hardware,glass crafts,ceramic crafts such us watches,mobile phone metal
shell,sanitary ware,mould,electronic products,crystal glass, glasses, cutlery,knives
and so on.
Vertical type ; horizontal type ; single door type ; double-door type.
Stainless steel, aluminum, titanium, tungsten and other metal films may
be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film
(DLC), decorative film metal, film and non-metallic composite coating film and its
High pumping speed, high efficiency, energy saving, full automatic process
controller can be simple, reliable, beautiful.
