Payment & Shipping Terms:
|Business Type:||Manufacturer||Operating System:||PLC Touching Screen|
|Machine Type:||PVD Machine||Coating Film:||ITO Conductive Films|
roll to roll coating machines,
roller coating machine
1. Vacuum Coating room: vertical single room, multi-room or horizontal single, multi-chamber structure
selection, 304 stainless steel material, the effective diameter of the vacuum chamber is 800mm- 3500mm,
with water cooling structure, etc.
2. Vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, low temperature
pump, high vacuum oil diffusion pump with cold well, high vacuum oil diffusion pump, adopt stainless steel
pipe and valve.
3. Coating system: 2 sets of 2-10 sets of flat target or column target, DC magnetron sputtering, DC+RF
magnetron sputtering, HDAP coating.
4. Inflating system: 1-4 gas flow meter and flow indicator control.
5. Control system: touch screen, PLC, automatic and manual control can be converted at any time.Real-
time display detailed parameters, fully automatic control of the entire production process, automatic
storage process parameters.The main electrical components are famous brands such as schneider.
6. Safety system: setting up the sound and light alarm device of water, electricity and gas anomaly, and
implementing corresponding protection procedures.
7. Auxiliary pumping: a quick circulating low temperature water vapor trap.
8. Heating system: the temperature of the base plate can reach 350 degrees with the tube and other
9. Can be equipped with multiple target sources according to customer requirements.

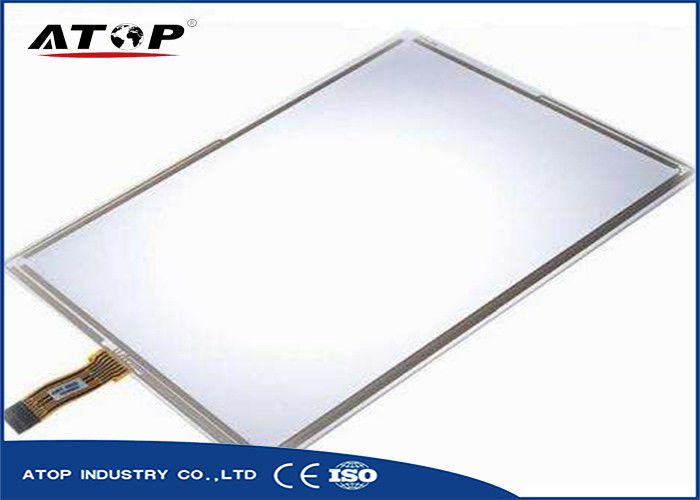

Mainly suitable for liquid crystal displays, plasma displays, electroluminescent display, touch screen, solar
cells, flexible circuit boards and other conductive glass and electronic instrument high transparent
conductive films.A semiconductor membrane with high conductivity, visible transmittance, mechanical
hardness and good stability.By using different structure targets and different target materials, a layer or
layer of nano-coating is deposited on the substrate surface to form a high and low resistance ITO film.
ATOP E-Book Touchscreen LCD Screen Higher Deposition Rate ITO Glass Coating
Vacuum Chamber Size
|Decide according to the substrate size and output|
High transparent conductive films
|Gold, rose gold,coffee,brown,bronze,blue,rainbow etc.|
Mainly suitable for liquid crystal displays, plasma displays, electroluminescent
|Vertical type ; horizontal type ; single door type ; double-door type.|
The rolling system adopts high precision servo frequency conversation to control the
High pumping speed, high efficiency, energy saving, full automatic process controller
can be simple, reliable, beautiful.
